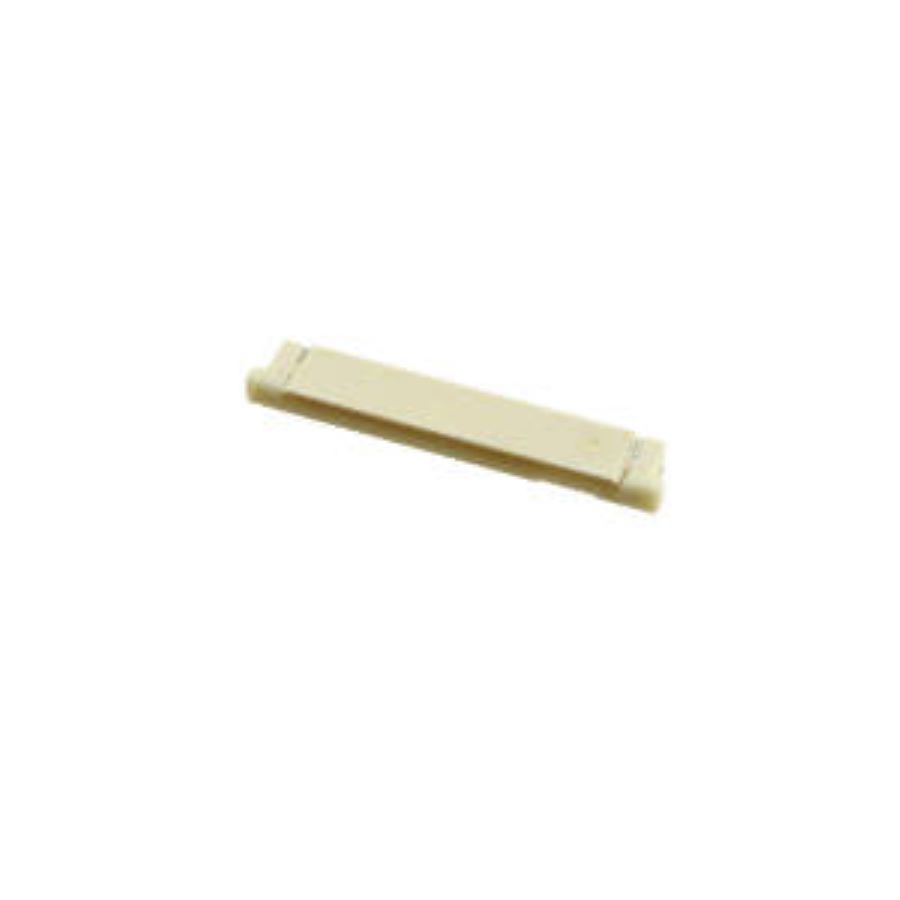

4-1734839-0
Manufacturer:
TE Connectivity
Mfr.Part #:
4-1734839-0
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:40 500 mA 250 V
| Parameter | Value |
|---|---|
| Length | 25.43 mm |
| Width | 5.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 40 |
| Height | 2.05 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 40 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Location | Top |
| Actuator Material | Thermoplastic |
| Contact Current Rating | 500 mA |
| Housing Color | Natural |
| Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
| Mounting Angle | Right Angle |
Stock: 129
Distributors
pcbx
pcbxUnit Price$0.96192
Ext.Price$0.96192
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96192 | $0.96192 |
| 10 | $0.80256 | $8.02560 |
| 25 | $0.74806 | $18.70150 |
| 50 | $0.69726 | $34.86300 |
| 100 | $0.64990 | $64.99000 |
| 300 | $0.62563 | $187.68900 |
| 500 | $0.60227 | $301.13500 |
| 1000 | $0.57686 | $576.86000 |
